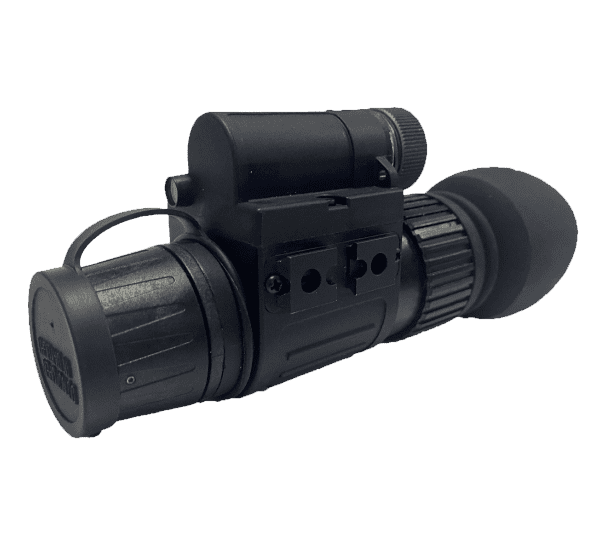

ATNThe ATN PNVS14-HPTIW Multi-Purpose Night Vision Monocular is a high-performance, modular night vision device. Originally designed for commercial applications such as boating, outdoor recreation and home security. The ATN PNVS14-HPTIW offers versatile use options, including handheld, head-mounted, and attachment to helmets.
The ATN PNVS14-HPTIW Multi-Purpose Night Vision Monocular is a high-performance, modular night vision device. Originally designed for commercial applications such as boating, outdoor recreation and home security. The ATN PNVS14-HPTIW offers versatile use options, including handheld, head-mounted, and attachment to helmets.
| MODEL | PNVS14-HPTIW |
| IIT | Gen2+ |
| Magnification | 1X |
| Resolution (lp/mm) | 58 Minimum |
| SNR | 22 Minimum |
| Phosphor | P45 White |
| MTTF | 10,000 |
| FOV (degree) | 40 |
| Detection distance (M) | 180-220 |
| Graduation cursor | Internal (optional) |
| Diopter range | -6D ~ +4D |
| Optical system | F1.2, 25mm |
| Distance range (M) | 0.25 - ∞ |
| Size/Dimensions (mm) | 112 x 70 x 49 |
| Weight (no battery) | 360g |
| Battery Voltage | 2.6-4.2V |
| Battery type | CR123(A) x1 |
| Battery life (H) | 80 (IR OFF) / 40 (IR ON) |
| Temperature range (℃) | -40 to +50 |
| Humidity range | 5% - 98% |
| Waterproof | IP67 |
